Android Getting Started edit

Creating a New Project

Set up Android Studio

Start by setting up Android Studio and then open it. Now, you’re ready to make your first Android App!

Note: this guide is based on Android Studio 2.2, but the process on other versions is mainly the same.

Configure Your Project

Basic Configuration

You can start a new project in two ways:

Next, you need to describe your application by filling out some fields:

  1. Application Name - This name will be shown to the user.

Example: Hello World. You can always change it later in AndroidManifest.xml file.

  1. Company Domain - This is the qualifier for your project’s package name.

Example: stackoverflow.com.

  1. Package Name (aka applicationId) - This is the fully qualified project package name.
It should follow *Reverse Domain Name Notation* (aka *Reverse DNS*): *Top Level Domain* **.** *Company Domain* **.** [*Company Segment* **.**] *Application Name*.

Example: `com.stackoverflow.android.helloworld` or `com.stackoverflow.helloworld`. You can always change your *applicationId* by overriding it in your [gradle file][1].
Don’t use the default prefix “com.example” unless you don’t intend to submit your application to the Google Play Store. The package name will be your unique applicationId in Google Play.
  1. Project Location - This is the directory where your project will be stored.


Select Form Factors and API Level

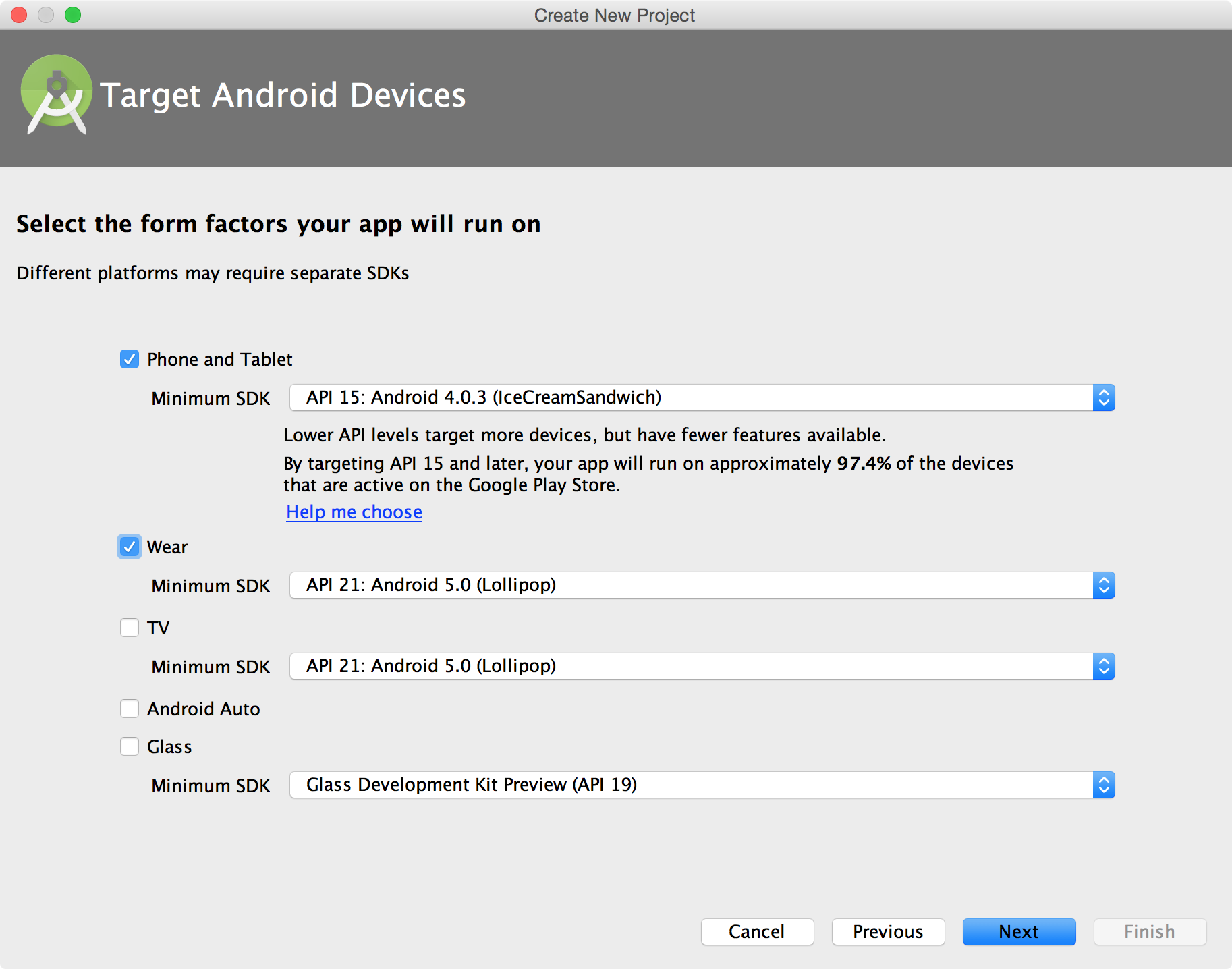

The next window lets you select the form factors supported by your app, such as phone, tablet, TV, Wear, and Google Glass. The selected form factors become the app modules within the project. For each form factor, you can also select the API Level for that app. To get more information, click Help me choose

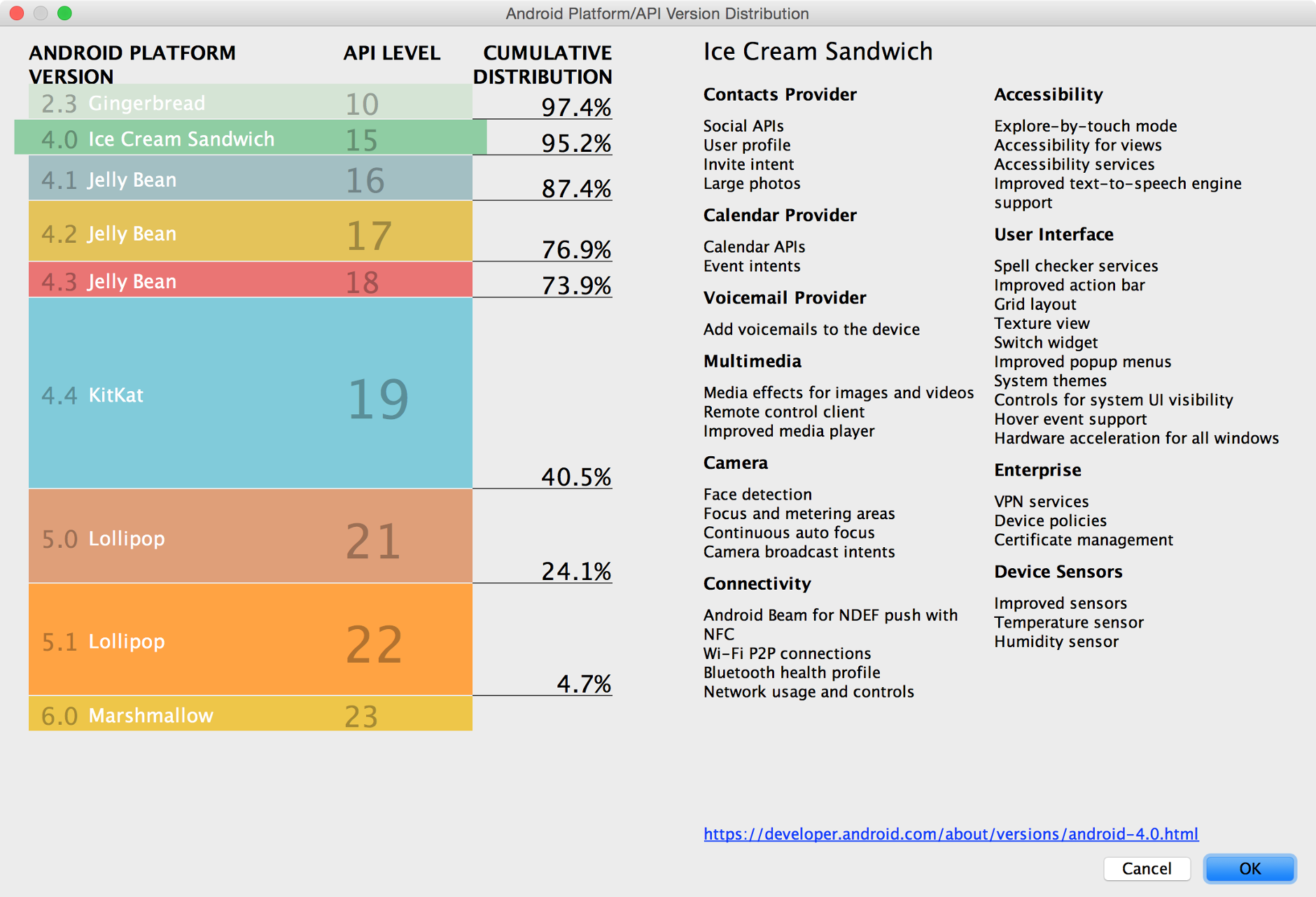

Chart of the current Android version distributions, shown when you click Help me choose.



The Android Platform Distribution window shows the distribution of mobile devices running each version of Android, as shown in Figure 2. Click on an API level to see a list of features introduced in the corresponding version of Android. This helps you choose the minimum API Level that has all the features that your apps needs, so you can reach as many devices as possible. Then click OK.

Now, choose what platforms and version of Android SDK the application will support.



For now, select only Phone and Tablet.

The Minimum SDK is the lower bound for your app. It is one of the signals the Google Play Store uses to determine which devices an app can be installed on. For example, Stack Exchange’s app supports Android 4.1+.



Android Studio will tell you (approximately) what percentage of devices will be supported given the specified minimum SDK.

Lower API levels target more devices but have fewer features available.

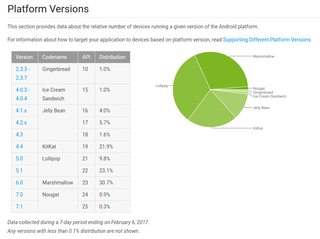

When deciding on the Minimum SDK, you should consider the Dashboards stats, which will give you version information about the devices that visited the Google Play Store globally in the last week.



From: Dashboards on Android Developer website.

Add an activity

Now we are going to select a default activity for our application. In Android, an Activity is a single screen that will be presented to the user. An application can house multiple activities and navigate between them. For this example, choose Empty Activity and click next.

Here, if you wish, you can change the name of the activity and layout. A good practice is to keep Activity as a suffix for the activity name, and activity_ as a prefix for the layout name. If we leave these as the default, Android Studio will generate an activity for us called MainActivity, and a layout file called activity_main. Now click Finish.

Android Studio will create and configure our project, which can take some time depending on the system.

Inspecting the Project

To understand how Android works, let’s take a look at some of the files that were created for us.

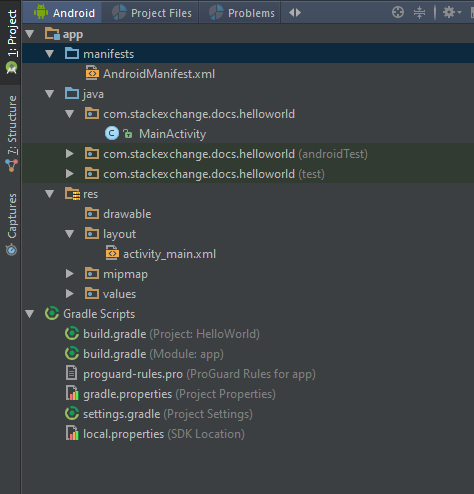

On the left pane of Android Studio, we can see the structure of our Android application.



First, let’s open AndroidManifest.xml by double clicking it. The Android manifest file describes some of the basic information about an Android application. It contains the declaration of our activities, as well as some more advanced components.

If an application needs access to a feature protected by a permission, it must declare that it requires that permission with a <uses-permission> element in the manifest. Then, when the application is installed on the device, the installer determines whether or not to grant the requested permission by checking the authorities that signed the application’s certificates and, in some cases, asking the user. An application can also protect its own components (activities, services, broadcast receivers, and content providers) with permissions. It can employ any of the permissions defined by Android (listed in android.Manifest.permission) or declared by other applications. Or it can define its own.

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.stackoverflow.helloworld">

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:supportsRtl="true"
        android:theme="@style/AppTheme">
        <activity android:name=".MainActivity">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
    </application>
</manifest>

Next, let’s open activity_main.xml which is located in app/src/main/res/layout/. This file contains declarations for the visual components of our MainActivity. You will see visual designer. This allows you to drag and drop elements onto the selected layout.

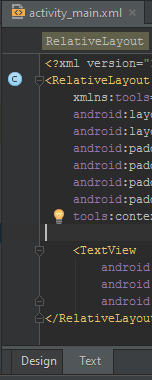

You can also switch to the xml layout designer by clicking “Text” at the bottom of Android Studio, as seen here:


<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:paddingBottom="@dimen/activity_vertical_margin"
    android:paddingLeft="@dimen/activity_horizontal_margin"
    android:paddingRight="@dimen/activity_horizontal_margin"
    android:paddingTop="@dimen/activity_vertical_margin"
    tools:context="com.stackexchange.docs.helloworld.MainActivity">

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Hello World!" />
</RelativeLayout>

You will see a widget called a TextView inside of this layout, with the android:text property set to “Hello World!”. This is a block of text that will be shown to the user when they run the application.

You can read more about Layouts and attributes.

Next, let’s take a look at MainActivity. This is the Java code that has been generated for MainActivity.

public class MainActivity extends AppCompatActivity {

    // The onCreate method is called when an Activity starts
    // This is where we will set up our layout
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

        // setContentView sets the Activity's layout to a specified XML layout
        // In our case we are using the activity_main layout
        setContentView(R.layout.activity_main);
    }
}

As defined in our Android manifest, MainActivity will launch by default when a user starts the HelloWorld app.

Lastly, open up the file named build.gradle located in app/.

Android Studio uses the build system Gradle to compile and build Android applications and libraries.

apply plugin: 'com.android.application'

android {
signingConfigs {
         applicationName {
             keyAlias 'applicationName'
             keyPassword 'password'
             storeFile file('../key/applicationName.jks')
             storePassword 'anotherPassword'
         }
     }
    compileSdkVersion 26
    buildToolsVersion "26.0.0"

    defaultConfig {
        applicationId "com.stackexchange.docs.helloworld"
        minSdkVersion 16
        targetSdkVersion 26
        versionCode 1
        versionName "1.0"
        signingConfig signingConfigs.applicationName
    }
    buildTypes {
        release {
            minifyEnabled false
            proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'
        }
    }
}

dependencies {
    compile fileTree(dir: 'libs', include: ['*.jar'])
    testCompile 'junit:junit:4.12'
    compile 'com.android.support:appcompat-v7:26.0.0'
}

This file contains information about the build and your app version, and you can also use it to add dependencies to external libraries. For now, let’s not make any changes.

It is advisable to always select the latest version available for the dependencies:

compileSdkVersion

compileSdkVersion is your way to tell Gradle what version of the Android SDK to compile your app with. Using the new Android SDK is a requirement to use any of the new APIs added in that level.

It should be emphasized that changing your compileSdkVersion does not change runtime behavior. While new compiler warnings/errors may be present when changing your compileSdkVersion, your compileSdkVersion is not included in your APK: it is purely used at compile time.

Therefore it is strongly recommended that you always compile with the latest SDK. You’ll get all the benefits of new compilation checks on existing code, avoid newly deprecated APIs, and be ready to use new APIs.

minSdkVersion

If compileSdkVersion sets the newest APIs available to you, minSdkVersion is the lower bound for your app. The minSdkVersion is one of the signals the Google Play Store uses to determine which of a user’s devices an app can be installed on.

It also plays an important role during development: by default lint runs against your project, warning you when you use any APIs above your minSdkVersion, helping you avoid the runtime issue of attempting to call an API that doesn’t exist. Checking the system version at runtime is a common technique when using APIs only on newer platform versions.

targetSdkVersion

targetSdkVersion is the main way Android provides forward compatibility by not applying behavior changes unless the targetSdkVersion is updated. This allows you to use new APIs prior to working through the behavior changes. Updating to target the latest SDK should be a high priority for every app. That doesn’t mean you have to use every new feature introduced nor should you blindly update your targetSdkVersion without testing.

targetSDKVersion is the version of Android which is the upper-limit for the available tools. If targetSDKVersion is less than 23, the app does not need to request permissions at runtime for an instance, even if the app is being run on API 23+. TargetSDKVersion does not prevent android versions above the picked Android version from running the app.

You can find more info about the Gradle plugin:

Running the Application

Now, let’s run our HelloWorld application. You can either run an Android Virtual Device (which you can set up by using the AVD Manager in Android Studio, as described in the example below) or connect your own Android device through a USB cable.

Setting up an Android device

To run an application from Android Studio on your Android Device, you must enable USB Debugging in the Developer Options in the settings of your device.

Settings > Developer options > USB debugging

If Developer Options is not visible in the settings, navigate to About Phone and tap on the Build Number seven times. This will enable Developer Options to show up in your settings.

Settings > About phone > Build number

You also might need to change build.gradle configuration to build on a version that your device has.

Running from Android Studio

Click the green Run button from the toolbar at the top of Android Studio. In the window that appears, select whichever device you would like to run the app on (start an Android Virtual Device if necessary, or see https://stackoverflow.com/documentation/android/85/getting-started-with-android/29572/setting-up-an-avd-android-virtual-device if you need to set one up) and click OK.



On devices running Android 4.4 (KitKat) and possibly higher, a pop-up will be shown to authorize USB debugging. Click OK to accept.

The application will now install and run on your Android device or emulator.

APK file location

When you prepare your application for release, you configure, build, and test a release version of your application. The configuration tasks are straightforward, involving basic code cleanup and code modification tasks that help optimize your application. The build process is similar to the debug build process and can be done using JDK and Android SDK tools. The testing tasks serve as a final check, ensuring that your application performs as expected under real-world conditions. When you are finished preparing your application for release you have a signed APK file, which you can distribute directly to users or distribute through an application marketplace such as Google Play.

Android Studio

Since in the above examples Gradle is used, the location of the generated APK file is: <Your Project Location>/app/build/outputs/apk/app-debug.apk

IntelliJ

If you are a user of IntelliJ before switching to Studio, and are importing your IntelliJ project directly, then nothing changed. The location of the output will be the same under:

out/production/...

Note: this is will become deprecated sometimes around 1.0

Eclipse

If you are importing Android Eclipse project directly, do not do this! As soon as you have dependencies in your project (jars or Library Projects), this will not work and your project will not be properly setup. If you have no dependencies, then the apk would be under the same location as you’d find it in Eclipse:

bin/...
