Create a custom in-app keyboard

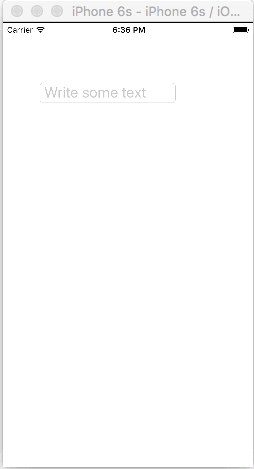

This is a basic in-app keyboard. The same method could be used to make just about any keyboard layout. Here are the main things that need to be done:

Create the keyboard layout in an .xib file, whose owner is a Swift or Objective-C class that is a UIView subclass.
Tell the UITextField to use the custom keyboard.
Use a delegate to communicate between the keyboard and the main view controller.

Create the .xib keyboard layout file

In Xcode go to File > New > File… > iOS > User Interface > View to create the .xib file.
I called mine Keyboard.xib
Add the buttons that you need.
Use auto layout constraints so that no matter what size the keyboard is, the buttons will resize accordingly.
Set the File’s Owner (not the root view) to be the Keyboard class. This is a common source of error. You’ll create this class in the next step. See the note at the end.

Create the .swift UIView subclass keyboard file

In Xcode go to File > New > File… > iOS > Source > Cocoa Touch Class to create the Swift or Objective-C class. Choose UIView as a superclass for newly created class
I called mine Keyboard.swift (Keyboard class in Objective-C)
Add the following code for Swift:

import UIKit

// The view controller will adopt this protocol (delegate)
// and thus must contain the keyWasTapped method
protocol KeyboardDelegate: class {
    func keyWasTapped(character: String)
}

class Keyboard: UIView {

    // This variable will be set as the view controller so that
    // the keyboard can send messages to the view controller.
    weak var delegate: KeyboardDelegate?

    // MARK:- keyboard initialization

    required init?(coder aDecoder: NSCoder) {
        super.init(coder: aDecoder)
        initializeSubviews()
    }

    override init(frame: CGRect) {
        super.init(frame: frame)
        initializeSubviews()
    }

    func initializeSubviews() {
        let xibFileName = "Keyboard" // xib extention not included
        let view = NSBundle.mainBundle().loadNibNamed(xibFileName, owner: self, options: nil)[0] as! UIView
        self.addSubview(view)
        view.frame = self.bounds
    }

    // MARK:- Button actions from .xib file

    @IBAction func keyTapped(sender: UIButton) {
        // When a button is tapped, send that information to the
        // delegate (ie, the view controller)
        self.delegate?.keyWasTapped(sender.titleLabel!.text!) // could alternatively send a tag value
    }

}

Add the following code for Objective-C:

**Keyboard.h File**

 #import <UIKit/UIKit.h>

 // The view controller will adopt this protocol (delegate)
 // and thus must contain the keyWasTapped method
 @protocol KeyboardDelegate<NSObject>
 - (void)keyWasTapped:(NSString *)character;
 @end

 @interface Keyboard : UIView
 @property (nonatomic, weak) id<KeyboardDelegate> delegate;
 @end

Keyboard.m File

#import "Keyboard.h"

@implementation Keyboard

- (id)initWithCoder:(NSCoder *)aDecoder {
    self = [super initWithCoder:aDecoder];
    [self initializeSubviews];
    return self;
}

- (id)initWithFrame:(CGRect)frame {
    self = [super initWithFrame:frame];
    [self initializeSubviews];
    return self;
}

- (void)initializeSubviews {
    NSString *xibFileName = @"Keyboard"; // xib extention not included
    UIView *view = [[[NSBundle mainBundle] loadNibNamed:xibFileName owner:self options:nil] firstObject];
    [self addSubview:view];
    view.frame = self.bounds;
}

// MARK:- Button actions from .xib file

-(IBAction)keyTapped:(UIButton *)sender {
    // When a button is tapped, send that information to the
    // delegate (ie, the view controller)
    [self.delegate keyWasTapped:sender.titleLabel.text]; // could alternatively send a tag value
}

@end

Control drag actions from the buttons to button callback in the .xib file to the @IBAction method in the Swift or Objective-C owner to hook them all up.
Note that the protocol and delegate code. See this answer for a simple explanation about how delegates work.

Set up the View Controller

Add a UITextField to your main storyboard and connect it to your view controller with an IBOutlet. Call it textField.
Use the following code for the View Controller in Swift:

import UIKit

class ViewController: UIViewController, KeyboardDelegate {

    @IBOutlet weak var textField: UITextField!

    override func viewDidLoad() {
        super.viewDidLoad()

        // initialize custom keyboard
        let keyboardView = Keyboard(frame: CGRect(x: 0, y: 0, width: 0, height: 300))
        keyboardView.delegate = self // the view controller will be notified by the keyboard whenever a key is tapped

        // replace system keyboard with custom keyboard
        textField.inputView = keyboardView
    }

    // required method for keyboard delegate protocol
    func keyWasTapped(character: String) {
        textField.insertText(character)
    }
}

Use the following code for Objective-C:

.h File

#import <UIKit/UIKit.h>

 @interface ViewController : UIViewController

 @end

.m File

#import "ViewController.h"
#import "Keyboard.h"

@interface ViewController ()<KeyboardDelegate>

@property (nonatomic, weak) IBOutlet UITextField *textField;

@end

@implementation ViewController

- (void)viewDidLoad {
    [super viewDidLoad];
    // Do any additional setup after loading the view, typically from a nib.

    // initialize custom keyboard
    Keyboard *keyboardView = [[Keyboard alloc] initWithFrame:CGRectMake(0, 0, 0, 300)];
    keyboardView.delegate = self; // the view controller will be notified by the keyboard whenever a key is tapped

    // replace system keyboard with custom keyboard
    self.textField.inputView = keyboardView;
}

- (void)keyWasTapped:(NSString *)character {
    [self.textField insertText:character];
}

@end

Note that the view controller adopts the KeyboardDelegate protocol that we defined above.

Common error

If you are getting an EXC_BAD_ACCESS error, it is probably because you set the view’s custom class as Keyboard rather than do this for the nib File’s Owner.

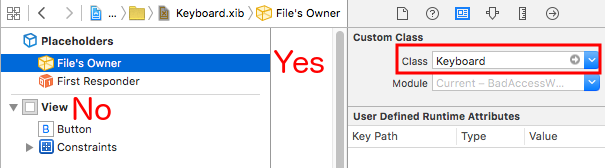

Select Keyboard.nib and then choose File’s Owner.

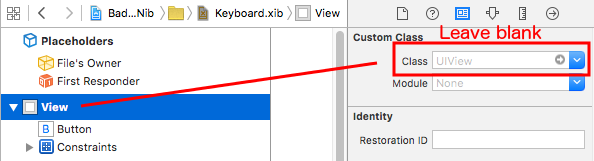

Make sure that the custom class for the root view is blank.

Notes

This example comes originally from this Stack Overflow answer.

Found a mistake? Have a question or improvement idea? Let me know.
